plzzzz help me urgently

- - - - -

  • Please log in to reply
2 replies to this topic

#1
d07a2010

d07a2010

    Newbie

  • Members
  • Pip
  • 20 posts
My Mother's phone Acer liquid E Ferrari Edition is died today
plz help me guys rapidly,I don't want her to know
when i tried to flash Original ROM 4.005.05.AAP.GEN2_A22F_A.bin with A1_DL_Tool,
it suddenly stopped on fastboot over 10 minutes and give failed message (failed fastboot)
i tried to remove usb and put it again but no hope
also tried this method:-

1. Pull battery in and usb cable to phone and pc
Press in order and without releasing
1. < (back button)
2. Camera
3. (power) not always necessary

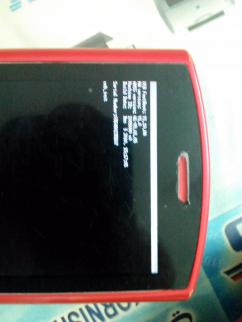

Bootloader should appear.

I think FastBoot appears but I don't know what i've to do exactly
phone also charging good

Sorry for my bad English
Thanks in advance,

Attached Files


Edited by d07a2010, 15 June 2013 - 05:40 AM.

  • 0

#2
Master_T

Master_T

    Addict

  • Members
  • PipPipPipPipPip
  • 591 posts
You tried to flash the wrong bin, if you have the Ferrari Edition you should use the ferrari rom: 4.002.15_EMEA-G1F_05.02.01 (For Liquid E Ferrari Edition 512MB)

Since you reach bootloader, you should be able to recover it. Does Liquid Download Tool recognize the phone while it's in fastboot? If so, try to flash with the proper bin.

If not you must use fastboot to flash the pieces of the ROM manually. Use this tool: https://disk.yandex....tnNgnpIup0rJH8= to unpack the various pieces of the BIN file (the one with .img extensions), and flash them manually with fastboot. I must admit I don't know exactly the partition names to give to fastboot for flashing, someone else will have to help you with that.


  • 1

#3
errmsg

errmsg

    Regular

  • Members
  • PipPip
  • 55 posts
  • Gender:Male
  • Location:Kiev
  • Interests:Kernel
  • Devices:Liquid A1 hw_version=6
  • Twitter:@RomanYepishev
Here are the MTD partition names - https://github.com/r...quid-E-Hardware

Regarding unpack_acer_mergedos utility: you need to use -s option to get fastboot-flashable images, otherwise they will not work. See this thread for information on the unpacker.

Edited by errmsg, 15 June 2013 - 06:22 PM.

  • 0
My Acer Liquid Wiki
Share your knowledge because your hard drives are mortal.
