[Device][Guide][Root][CWM][ROM] Cherry Mobile OMEGA HD 2.0 (rebranded Xolo Q1000)

- - - - -

  • Please log in to reply
10 replies to this topic

#1
excel0

excel0

    Newbie

  • Members
  • Pip
  • 29 posts
  • Gender:Male
  • Location:Philippines
  • Devices:Cherry Mobile OMEGA HD 2.0
  • Twitter:@excelkit

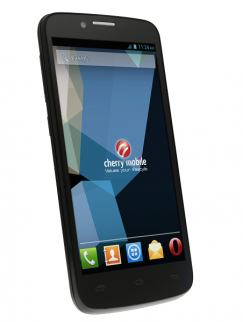

OMEGA HD 2.0                            XOLO Q1000
Attached File  Black_Front-F.png   185.53KB   4 downloads Attached File  lava-q1000-1.jpg   51.07KB   3 downloads
Device Information:

The OMEGA HD 2.0 is a 5" smartphone by the local Philippine mobile phone brand, Cherry Mobile. It is simply a rebranded Xolo Q1000. Its specifications are completely the same as the Q1000 except for the camera resolution. Even though the OHD2 is said to have a 12MP camera it only has an 8MP one which is interpolated to capture a 12MP image. You may also notice that the OHD2 is labelled to have a qHD screen on the brand's website but this is false as the OMEGA HD 2.0 is indeed HD.



Specifications:

Operating System: Android Jellybean 4.2.1

Chipset: MTK 6589

CPU: 1.2 GHz Quad Core MT6589

GPU: PowerVR SGX544



Memory: 4GB ROM (1GB Internal Memory, 1GB Phone Storage/Internal SD Card, remaining for misc partitions)

1GB RAM

Micro-SD card, up to 32GB



Display: IPS LCD Capacitive Touchscreen

720 x 1280 pixels, 5.0", ~294ppi

5 point Multitouch



Primary Camera: 12.6MP, 4096 x 3072 pixels, Interpolated

LED Flash, Autofocus

1080p video recording @ 30fps



Secondary Camera: 1.9MP 1600 x 1200 pixels



Battery: Li-on 2100 mAh



Dual SIM

SIM1 - 2G, 3G

SIM2 2G only



More Information:

Because the OHD2 has a Mediatek Chipset it does not have that much freedom for development of custom ROMS because Mediatek does not provide device source codes openly unlike Qualcomm and a few others. Although some source codes have been released for the MTK 6589, there isn't seem to be much interest in developing custom ROMS like Cyanogenmod or AOKP for this phone or any other Mediatek phones. But because a lot of devices share the same Chipset as the OHD2 many have ported ROMS from these devices to this phone.



The OHD2 also has 2 build numbers, 49 and 7. These can be found in the "About phone" option in "Settings". The build number is crucial when flashing ROMS because some ROMS cannot support both builds.



Next post: Rooting


Edited by excel0, 11 October 2013 - 02:25 PM.

  • 0

#2
excel0

excel0

    Newbie

  • Members
  • Pip
  • 29 posts
  • Gender:Male
  • Location:Philippines
  • Devices:Cherry Mobile OMEGA HD 2.0
  • Twitter:@excelkit

Rooting:
Framaroot Method:

Attached File  Screenshot_2013-10-10-12-30-46.png   86.09KB   6 downloads

  • Download Framaroot - Direct Link: http://forum.xda-dev...03&d=1380569629 (Framaroot-1.6.1.apk, 908.2 KB)
                                     Forum Thread: http://forum.xda-dev...d.php?t=2130276
  • Copy the apk to your SD Card or Phone Storage
  • Go to Settings > Security, and tick the Unknown sources box
  • Install the apk and launch it
  • Simply tap Boromir and it should tell you to reboot WITHOUT FORCE CLOSING. If it does FC, just do it again and it should eventually work the second time.
  • Reboot!

You have now successfully rooted your phone. The next thing to do is to update SuperSU if an update is available.


Edited by excel0, 11 October 2013 - 01:32 PM.

  • 0

#3
excel0

excel0

    Newbie

  • Members
  • Pip
  • 29 posts
  • Gender:Male
  • Location:Philippines
  • Devices:Cherry Mobile OMEGA HD 2.0
  • Twitter:@excelkit

ClockworkMod Recovery:
SP Flashtool Method: *with (some) Pictures

  • Download the following:
    a. SP Flashtool - Direct Link: http://goo.gl/6nlbkH (SP_Flash_Tool_v3.1328.0.183.7z, 3.24 MB)
    b. MT6589 scatter file - Direct Link: http://goo.gl/OYlHLx (MT6589_Android_scatter_emmc.txt, 523 KB)
    c. MT6589 Drivers - Direct Link: http://goo.gl/IspeSa (MT6589 drivers.zip, 402.77 KB)
    d. Recovery Image - Direct Link: http://goo.gl/fgLL40 (recovery_6028.img, 5.85 MB)
  • Extract "MT6589 drivers.zip"
  • Run "install_driver.exe" if you are on a 32bit/x86 OS and "installdrv64.exe" if you are on a 64bit/x64 OS. It is highly recommended to do a system reboot after the driver installation.
  • Extract "SP_Flash_Tool_v3.1328.0.183.7z"
  • Run "Flash_tool.exe".
  • In the program window with the name "Smart Phone Flash Tool (Runtime Trace Mode)" that showed up, click "Scatter-loading" (see: Figure 1.1).
    Figure 1:
    Attached File  spft.png   17.24KB   58 downloads


  • In the pop up explorer window showed up, navigate to the "MT6589_Android_scatter_emmc.txt" file. Select it and click "Open" (see: Figure 1.2).
    Figure 1.2:
    Attached File  scatter.png   24.94KB   43 downloads


  • The table in the program window will be filled up. Tick the box for "RECOVER" in the "name" column, then click the word itself (See: Figure 1.3).
    Figure 1.3:
    Attached File  fill.png   20.29KB   66 downloads


  • On the pop up explorer window, navigate to the "recover_6028.img". Select it and click "Open" (see: Figure 1.4).
    Figure 1.4:
    Attached File  recov.png   24.31KB   60 downloads


  • On the device, go to Settings > Developer options, and tick the USB debugging box
  • Turn off the device and remove the battery.
  • Connect the device to the PC with a USB Data Cable
  • On the PC, click download and click yes to the warning pop up.
  • Now place back the battery.
  • The program should start downloading the file to the device and finally a pop up windows with a green circle should be seen.
  • Close the program, remove the data cable and remove the battery of the device.
  • Place back the battery in the device and boot to "recovery mode" by pressing "power + volume up".
  • It should boot you to "CWM Recovery v6.0.2.8"
  • Congratulations! You now have a (better) custom recovery!

Mobileuncle Tools Method (very easy):

  1. Download the following:
    a. MobileUncle Tools - Play Store Link: http://goo.gl/OncwbY (Mobileuncle MTK Tools, 1.2 MB)
    b. Recovery Image - Direct Link: http://goo.gl/IspeSa (recovery_6028.img, 5.85 MB)
  2. Place the "recovery_6028.img" on the root of your SD Card
  3. Launch Mobileuncle Tools and tap "Recovery Update" (see: Figure 2.1)
    Figure 2.1:
    Attached File  Screenshot_2013-10-12-11-54-40.png   190.87KB   26 downloads

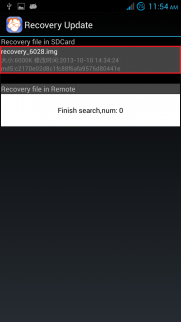

  4. tap "recover_6028.img" under "Recovery file in SDCard". If you haven't placed the "recovery_6028.img" on the root of your SDCard at this point, you will not see and be able to do this (see: Figure 2.2).
    Figure 2.2:
    Attached File  Screenshot_2013-10-12-11-54-47.png   200.51KB   23 downloads


  5. Tap "OK" to flash recovery (see: Figure 2.3).
    Figure 2.3:
    Attached File  Screenshot_2013-10-12-11-54-55.png   126.98KB   16 downloads



Now that you have a full featured custom recovery go down below to install custom ROMS.


Edited by excel0, 12 October 2013 - 09:06 AM.

  • 0

#4
excel0

excel0

    Newbie

  • Members
  • Pip
  • 29 posts
  • Gender:Male
  • Location:Philippines
  • Devices:Cherry Mobile OMEGA HD 2.0
  • Twitter:@excelkit

Reserved


  • 0

#5
excel0

excel0

    Newbie

  • Members
  • Pip
  • 29 posts
  • Gender:Male
  • Location:Philippines
  • Devices:Cherry Mobile OMEGA HD 2.0
  • Twitter:@excelkit

Reserved


  • 0

#6
SHREYAAS

SHREYAAS

    Newbie

  • Members
  • Pip
  • 1 posts

Hi, ive got a xolo q 1000, i had searching for the cwm recovery for a long time, thanks for  the above methods, i tried it with the tool kit but it did not work, then i tried with mobile uncle tools, it got flashed successfully , thanks a lot, can you please give me the link for custom roms for  xolo q 1000, it would be really helpful, thanks guys


  • 0

#7
excel0

excel0

    Newbie

  • Members
  • Pip
  • 29 posts
  • Gender:Male
  • Location:Philippines
  • Devices:Cherry Mobile OMEGA HD 2.0
  • Twitter:@excelkit

Thank you for your reply and I'm really happy that this helped someone  :D . I will be posting the ROMS soon :) .



Please take note that flashing these might brick your device :excl: . Even though they're basically the same phones, the original Q1000 and the OHD2.0 (rebranded) have differences and the ROMS I will be posting are for/ported for the OHD2.0. And one more danger is that I have no idea what build number (Build 7/Build 49) should be used for the original Q1000. But the only difference so far in my experience regarding Build 7 and 49 ROMS are their boot.img. So I guess you should extract the boot.img of YOUR phone and replace the one in the ROM with it. Although I am not exactly sure if it would work and THERE WILL STILL BE HAZARDS :excl: .



Please "up" my post if it helped you (in this case it did) it really helps me a lot. Thank you  :D


Edited by excel0, 19 October 2013 - 03:42 AM.

  • 0

#8
aneesasil

aneesasil

    Newbie

  • Members
  • Pip
  • 16 posts

hi,



Lewa OS and MIUI have both made awesome roms for the xolo q1000,..here is the link for the Lewa OS http://forum.xda-dev...d.php?t=2465307



and the link for MIUI http://forum.miui-in...read&postID=251   I have installed and checked both and they are working flawless. The MIUI rom with the latest update may have some bugs but the earlier one is perfect.



Regards:

Anees


Edited by aneesasil, 20 October 2013 - 08:46 AM.

  • 0

#9
excel0

excel0

    Newbie

  • Members
  • Pip
  • 29 posts
  • Gender:Male
  • Location:Philippines
  • Devices:Cherry Mobile OMEGA HD 2.0
  • Twitter:@excelkit

May I ask or can you please ask them where the ROM is ported from? I can't reply cuz my Rep is too low. Thank you  :)


  • 0

#10
voverty

voverty

    Newbie

  • Members
  • Pip
  • 2 posts
  • Devices:Cherry Mobile OOHD2.0

Hello, thank you for this wonderful tutorial for rooting and flashing CWM on CM OHD2.0.
Can you please help me... i cant find any site for downloading custom rom for build 7... I tried to download some custom rom from http://pinoyscreenca...uild 49.... :(.


  • 0

#11
voverty

voverty

    Newbie

  • Members
  • Pip
  • 2 posts
  • Devices:Cherry Mobile OOHD2.0

But it does not work on build 7.... i think those are for build 49...
