MTP is not working on my device. What can be causing the issue? I am on Windows 10

now, when i go to bootloader mode i get the following:

a listing from 0-5:

ptn0 name boot start=304 len=20

prn 1 name='system' start=324 len=880

ptn 2 name= userdata start 1204 len 642

ptn 3 cache = start 1846 len 160

ptn name=recovery start=2006 len 38

ptn 5 name=misc start 2044 len=4

CANNOT READ BOOT IMAGE HEADER

i tried with

fastboot flash recovery recovery-clockwork-2.5.0.4-pulse.img

to repair it and get:

sending "recovery (2758 kb) ....OK

writing Recovery .... OKAY

but nothing changes, it i press - power volume down red

or power volume up red

any idea? a link what to do? i'm googling and cant find anything...

at the moment i have a 150,- brick next to me :D

for me:i think it's stock froyo (um840)

please be positive i can't handle this phone any more

I wrote a small tool that lets you decompile Android XML files.

Well its more just a GUI for AXMLPrinter2.

What you need:

.NET Framework 3.5

Java SDK

HowTo:

Just click on File -> Open XML File.

You can then edit it in the Textbox below.

If you want to save your XML file click on File -> Save XML File.

Thats all.

Screenshot:

Greetings,

BigBear

AXMLPrinterGUI.rar

website: www.moboplay.com
download: download.moboplay.com/packages/MobileAssistant/moboplay/pcexe/officialsite/moboplay.exe

http://forum.xda-developers.com/showthread.php?t=1789713X10 specs of this x8 are similar to pulse's can it be done? thx in advance for reply

Let me introduce cm9 for Pulse. This time it is our own build compiled from source.

Thanks to dtox125 for the first source compilation.

Thanks goes also to tilal6991 for development/maintenance of cm9 for u8150 and general inspiration.

Requirements:

1. properly formatted SD card:

- ext2 partition (I use 512 MB). Rom won't work without it.

- swap partition 64 MB (not less)

2. /system partition not less than 110 MB. (Pulse u8220 users: prior installation of TRE or CHT8000 rom is required to achive such partition size).

Installation instructions:

- backup your current rom in case something go wrong;

- make FULL clean: "wipe data/factory reset" AND "format system";

- install Zip via CWM recovery. Reboot. Optionally install gapps.

Works:

- display,

- touchscreen,

- keypad,

- jogball,

- sound,

- radio (can reload sometimes),

- bluetooth,

- wifi,

- usb: mass storage, adb

- sd card,

- backlight/brightness,

- rotation,

- vibrator,

- native A2SD

Doesn't work:

- mobile data network

- camera

- gps

- keypad LEDs

- video playback

- hardware acceleration

- hardware accelerated boot animation

First load takes much time - at least 10 minutes, adb can be unreachable during the period.

Don't be scared of broken boot animation.

Post your feedback!

cm9-u8220-20120309.zip

gapps-ics-4.0.1-small-u8220.zip (Optional)

u8220 will die if install big memory consumers like Maps, Market, etc. u8230 should be better.

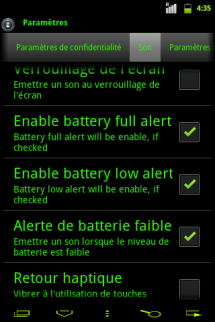

Some screenshots:

download: https://skydrive.live.com/redir?resid=BF3A662B0E6A6437!512&authkey=!AH8O-3KQRWD4cfU

Build with destruct0r's kernel and without chinese parts: http://depositfiles.com/files/chnvzmvrp

Based on P500 MIUI. Maybe it's better than chinese.

WHAT TO DO AFTER INSTALLATION, or solve problems:

All rights reserved Mydroid.by © Anarkill

T-Mo and Vanilla style :P

Install manually through Device manager.

x86 Pulse_Win7_Driver.zip work on Vista too.

x64 Pulse_2.1_Win7_x64_Driver.zip work on Vista too.

Win XP Pulse_2.1_XP_Drivers.zip

If you are having troubles installing the drivers on Win7 try this:

http://www.mediafire.com/file/jf2mnmjytuy/installing drivers.zip

For my Pulse rooting solution I thought i'd do something a bit different - introducing.... Superboot! :)

Superboot is a boot.img that when flashed, will root your device the first time you boot (installing su and the superuser APK). No need to flash the system partition, no need to use ADB, no messing with the contents of your data partition, no overwriting the shipped ROM on your device, just flash the boot image using the instructions below and you're done!

How to use Superboot - Windows, Linux and OSX

- Download the Superboot zip file from below and extract to a directory

- Put your device in bootloader mode - turn if off, then tap the powerbutton while holding the 'Volume Down' and 'End (Red)' keys

- WINDOWS - double click 'install-superboot-windows.bat'

- MAC - Open a terminal window to the directory containing the files, and type 'chmod +x install-superboot-mac.sh' followed by './install-superboot-mac.sh'

- LINUX - Open a terminal window to the directory containing the files, and type 'chmod +x install-superboot-linux.sh' followed by './install-superboot-linux.sh'

Download

Check if you have the 'December Update' - turn the device off, then turn if on with 'volume down' and 'end call' held. If the build date is Nov 26 2009 or newer, you have the December update applied.

Version for devices WITH the 'December Update' - http://loadbalancing.modaco.com/download.p...mb0k87f9c51eqg9

Version for devices WITHOUT the 'December Update' - http://loadbalancing.modaco.com/download.p...65pv39jj2oz6b6e

That's it, job done! Enjoy! :(

P

I would like to take this opportunity to introduce everyone to J-MOD, my own variant of the Community Custom ROM r2a created by Flibblesan from these forums.

I got my first android device (T-Mobile Pulse) in May this year and have become a follower of the customisation scene for Android. Initially starting with Paul’s MCR 1.7 custom it wasn’t long before I began installing custom roms trying to get the best out of my device.

When Android 2.1 was released I immediately installed it and the decided to use FLB-MOD as this was, and still is, the most popular by far. After keeping up-to-date the progress been made to FLB-MOD and having to re-configure my phone after every update I began to think, what about creating a rom to your own liking to minimise the re-configuration after updating, this is when J-MOD was born.

The aim of J-MOD was to have a ROM customised to my owns, but after doing the work and realising how much I had learnt from these forums I thought I’d release it for anyone else to use.

I want to say thanks to Flibblesan for the work he did on the Community Custom ROM. Although J-MOD is not based on FLB-MOD, I have used little parts of FLB-MOD in J-MOD, so again thanks to Flibblesan for the work he is doing with FLB-MOD.

Please note: The ROM will always be using the Stock Android Launcher as default. You are welcome to install ADW or Launcher Pro from the Market if you so wish. If there is demand I may include additional updates to change the launcher to ADW or Launcher Pro.

Also, I am fairly new to creating custom roms so I am still learning stuff, if you come across an issue then do report it, but it may take a bit of time to implement the fix if I can.

This ROM is a work in progress. Whilst it is stable on my phone, I cannot gurantee that it will be stable for you.

Before I give details of the ROM, I want to give credit to the people who deserve it:

Credit goes to Flibblesan for the work on Community Custom ROM and FLB MOD.

Credit also goes to Ogiogi for the work done on the Expresso MOD v1.2.

Credit goes to dogde-167 and flip360 for the work done on the Expresso Themed Stock Android Launcher.

Requirements:

You must have updated your device using the T-Mobile UK Android 2.1 Update or TRE 2.1 Update first, with ClockworkMod Recovery installed second.

Click here to download the Official T-Mobile UK 2.1 Update.

If you are unsure what to do, then please take a look at the Ultimate Pulse Owners Guide

v1.4, released on 02/10/2010 - LATEST

Do a full wipe, wipe dalvik cache etc.

• Uses A2SD Swap with Swappiness set to 15

• Removed Swapper 2 Application

• EStrongs File Explorer upgraded and moved to /data

• Replaced Huawei Contacts/Dialer with Android 2.1 Stock Contact/Dialer

• Replaced Launcher with Android 2.1 Stock Launcher

• Now uses Android 2.1 Stock Framework

• Changed Default Wallpaper
  j-mod-v1.4.zip

  v1.3, released on 21/09/2010
  Do a full wipe, wipe dalvik cache etc.
  • Added Swap enabled Kernel by Flibblesan

  • Added Swapper 2 Application

  • Added Facebook v1.32

  • Customised Stock Launcher with non-intrusive J-MOD branding.

  • Changed Default Wallpaper
    j-mod-v1.3.zip

    See the Ultimate Pulse Owners Guide on how to setup / configure Swap. By default Swap is enabled using A2SD providing you have created a Swap partition on your SD Card.

    v1.2, released on 15/09/2010
    Do a full wipe, wipe dalvik cache etc.

    Still uses the Expresso Framework by Ogiogi until I can decide on the look and feel I want.
    • Updated Android Terminal Emulator by Jack Palevich.

    • Updated EStrongs File Explorer to version 1.4.5 with full permission from the developers


    Download: j-mod-v1.2-signed.zip

    v1.1, released on 22/08/2010

    Do a full wipe, wipe dalvik cache etc.

    [*]Added Android Terminal Emulator by Jack Palevich.

    [*]Replaced stock File Manager with EStrongs File Explorer with full permission from the developers

    [*]ro.HOME_APP_ADJ=1 added tp local.prop

    [*]Ring Deley Fix Added

    [*]Custom J-MOD Boot Animation added.

    Download: j-mod-v1.1-signed.zip

    Initial Version: v1.0, released on 15/08/2010

    [*]Based on Community Custom ROM Version r2a

    [*]Canvas launcher replaced with Android Stock Launcher (Expresso Themed version)

    [*]Huawei Dialer & Contacts added

    [*]Expresso v1.2 Theme added as default

    [*]Documents to Go & RoadSync removed

    [*]SIM Toolkit removed

    Download: j-mod-v1-signed.zip

The unlock code will be supplied by e-mail in 1-2 working days.

Enjoy! :(

P

Thank you for your help and time

Im truing with menu+end call+ power button but not work.

Adb driver is instaled but not showing the device.

What should i do?

Contents

Introduction

Welcome to The Ultimate Pulse Owners Guide!

The purpose of this guide is to bring all knowledge, tips and tricks onto one easy to find thread. Providing good, solid, instructions every step of the way to give you the confidence to try out some of these options for yourself!

I believe easy to follow text instructions are less confusing than text and pictures, therefore this guide will not include any.

This guide will cover everything to allow you to go from a stock T-Mobile experience to a speedy, all singing all dancing, vanilla 2.1 experience,

A Word of Caution

Please note there is always a certain risk when flashing hardware. Although the pulse is very resilient and I have yet to see anyone who has "Bricked" their device beyond repair.

I am not responsible or liable for any damage or loss of any hardware or software that may have been caused while following the advise written in any part of this guide. Nor am I responsible for any claim for Death or Injury while following this guide. Please use caution and only read / follow this guide when and where it is safe to do so..

Otherwise known as: "Don't sue me"

This guide is under construction and I welcome your feedback!

This guide is 100% free to use. However if this has helped you out in any way then please feel free to donate

This entire guide is subject to copyright © under UK IP rights.. etc.etc. (Please gain express permission before copying any information from this topic.)

Working

RIL

3G

Wifi

Audio

Bluetooth

Lights

SD card

Not working

Sensors

Camera

pulse-gingerbread-aosp-0.2.zip

Flash with fastboot. Wipe data/cache.

Change log

AOSP 02

Fixed audio

Fixed bluetooth

Fixed lights

Fixed SD card

AOSP 0.1

Audio partially working. It works in calls, but nothing else.

Pre AOSP source.

test2

Fixed 3G.

Enabled JIT. Feels a bit quicker.

Fixed Wifi.

Add EGL libs. Not sure if egl is working right.

Note: Version 1.8 Beta now available - click for more details!

This ROM is now ONLY for Pulse devices running the 'December Update'.

If you are not running the update for any reason, a link to the 1.1 is included below.

I'm pleased to present my MoDaCo Custom ROM for the T-Mobile Pulse! A 'wipe' is highly recommended it switching from the Standard ROM / T-Mobile style MCR ROM!

You can now create a customised ROM containing only the parts you required - see the second post in this topic for details!

This ROM is based on the ROM for the U8230 device, and is VERY vanilla Android, with few of the Pulse enhancements. Only install this ROM if you want a 'stock' Android experience. This is a 1.0 release and therefore may contain bugs - proceed with caution!

MCR now optionally includes Wavesecure in ROM, allowing you to lock / locate / wipe your device remotely in the event of loss and be notified if the SIM is changed. The application cannot be uninstalled by a thief and we are actively working with Wavesecure to ensure that in a forthcoming release, your settings will survive a hard reset!

This ROM is based on the release ROM for the Pulse (together with my own optimisations) for the best possible performance!

Included in the ROM

- ROM is fully odex'd

- Built with my new MCR build process which reduces size and boosts the speed of the ROM

- Includes the MoDaCo Custom Kernel, which adds automatic compcache, swap support, EXT3/4 support and much more!

- Fixed build.prop so you can correctly download protected apps

- Rooted with 'adb remount' permission and superuser APK

- A2SD included (fully automatic - thanks cyanogen!) - create a EXT2/3/4 (3 or 4 recommended) partition as your second partition to use. You must NOT have a swap partition on your SD, or it will refuse to mount.

- Added Jbed Java

- Added Titanium Backup

- Added WiFi Status indicator, with kind permission of Andrew Schwimmer

- Added QuickBoot for booting into recovery mode / bootloader

- Added Dropbear SSH running by default, check 'About' screen for password (port 2222) - If you have problems using Roadsync, run 'adb shell /system/bin/removedropbear.sh'

- Added busybox 1.15.3 with Droid Explorer support

- Added nano 2.09 - text editor for use in shell mode

- Added parted and sqlite tools

- Added terminfo and settings to boot.img to allow nano etc. usea

- Added files required for Debian linux

- Added Open GL ES driver from Ion for improved graphics performance

- Moved Google Maps to data partition (better for reclaiming space after updating via market)

- You can now check your MoDaCo Custom ROM (MCR) version from the about menu

- Optional 'WaveSecure' add on pack (puts Wavesecure in ROM)

Downloads

This ROM is also available customised to your exact requirements in the MoDaCo Custom Custom ROM online kitchen - check it out!

Main ROM download: http://www.romraid.com/paul/pulse/update-p...core-signed.zip

Version 1.1 download for devices without the 'December Update': http://www.romraid.com/paul/pulse/update-p...core-signed.zip

'Wavesecure' add on pack: http://www.wavesecure.com/installations/update.zip

ENSURE YOU DO A NANDROID BACKUP SO YOU CAN 'ROLL BACK' IF REQUIRED!

Please note that first boot may take a little while, especially if you have a lot of apps on your A2SD partition. Be patient! If you want a real clean start or you have issues with your existing A2SD installed apps when you boot, you need to wipe your EXT2 partition on SD too by executing 'adb shell rm -r /system/sd/app', 'adb shell rm -r /system/sd/app-private' and 'adb shell reboot' :(

Installing the December Update

To check if you already have the December Update - turn the device off, then turn if on with 'volume down' and 'end call' held. If the build date is Nov 26 2009 or newer, you have the December update applied.

If not... the December Update is a requirement for this ROM - use the instructions below to update.

• Download the update file

• Unzip the downloaded file to a location of your choice on your computer

• Copy the “dload” folder and all its contents to the root directory of your microSD card

• Insert the microSD card back into your device

• On your device select Settings -> SD card -> Phone Storage -> Upgrade

• The upgrade process will give you several warnings which you need to confirm to continue - then press the Upgrade option to begin the update

• As the update progresses you will see several screens along with a progress bar

• Once complete you will see a confirmation screen, and your Pulse will automatically restart


Installation

To install the MoDaCo Custom ROM on your Pulse...

- Download this custom ROM from the links above and copy it to your SD card

- Download the custom recovery image and install as detailed in that post. Stay in recovery mode.

- Select 'nandroid backup' from the menu to do a backup

- Select 'Flash zip from sdcard' and apply the main ROM

All done - Feedback / feature requests welcome! :D

Finally, if you would like to show your appreciation for the ROM, please consider supporting MoDaCo by signing up for a MoDaCo Ad Free or MoDaCo Plus account, both of which also give you early access to Beta ROM releases and access to the the online kitchens.

P

how to install:enter recovery, 3 wipes and format system then flash the rom, reboot.

not working:wifi. gps? cam could work better ( have some green screen bug while launching and closing)

we have to play with files now to try to fix all that.

this rom made me crazy.so i will concentrate now on building frandom module for our phone(that is also driving me crazy cos i miss knowledge and explanation i can get are not enough precise...) :wacko:

link to the rom----> http://www.mediafire...2tgjewnzbtj14cd

github http://cyanmobile.github.com/

please give feed back and if you have solution , please just tell ;)

i will provide link soon about how to set cyanmobile....but you can google that while waiting...

that rom might be tweaked or reworked in the aim to free some ram...we're actually at the limit...

i would also say that rom is not stable for the moment...

any help is welcome

enjoy guys

At this moment I have CM7/2.3.7 installed on my Pulse, and I would like to go back to the official 2.1. Meanwhile it is not that easy. Long time ago, I have used the so called Time Machine ROM successfully to downgrade my phone, but I am unable to find it again.

The link in the ultimate guide is 404ed, and the file in this topic does not work for me. But I remember there was an older one (maybe the 404ed link?) that worked fine. Is there anybody who still has this file, and could post it for me? (Or give some other advice to downgrade my phone).

Thanks in advance.

This is a modified CyanogenMod 6.1 RC2 rom, originally ported for the U8220 by Tom G. The single installation file combines CyanogenMod, Gapps, and DT Apps2SD. (All apps included in the rom are available free on the Android Market.)

Changelog: See the end of the second post for the changelog.

Note: There are two versions of this rom: "TXG" is the basic rom, and "TXG-TW" is the same rom with Chinese IME support (including handwriting support). I intend to keep everything else about the roms the same. (That will mean that the TXG rom will have a bit smaller size compared to TXG-TW.) This rom is based on my "Basic CM6.1" rom, which was my first attempt at modifying Tom G's CyanogenMod 6.1.0 RC2 port. Tom did all the hard work; I'm just tweaking things and fixing a few bugs. Other people from these forums that are deserving of credit include Starkos, Antonio, Flibblesan, Toti, and a lot of other people from whom I "borrowed" code and good ideas. Thanks for the help you all provided. Also, the developers of the apps I chose to pre-install should be thanked for providing great free software.

Known problems/bugs: (I can't do any more to fix these bugs; you have to just live with them if you want to use this rom.)

• The front facing camera does not work.
• There are times when the GPS icon remains in the notification area after the GPS has been turned off. Ignore it, or reboot to remove it.
• The Camera app included in this rom has been modified by user Anegin and does not crash. However, with many third-party camera apps, attempting to take multiple pictures at 3mp resolution will crash the camera app and then cause a serious battery drain (until reboot). There are a few other camera apps available on the Market that can also be used, but I do not know which ones (reportedly the paid version of Vignette works).
• "Set MAC address" has been installed to solve the bug that reports an incorrect MAC address. Run it once to set your address, and the problem is solved.
• Some people have reported a bug in which the screen auto-rotation gets stuck. Suggested solutions are: (1) while booting, always hold the phone in portrait position until it is finished, and (2) disable 180 and 270 degree rotation in Settings/CyanogenMod settings/User interface (only allow 90 degree rotation).
  Pre-installation requirements. (This is important, so read all of this!) (For a more complete "how-to" on the points below please refer to The Ultimate Pulse Owners Guide.)
  • This ROM has been created for the Huawei U8220/U8230.
  • U8220/Pulse users who are installing the TXG rom must first update to the official UK 2.1 rom from back in 2010. (You can not use the UK 2011 update; the TRE rom and the CHT8000 rom will work as well; see below.)
  • U8220/Pulse users who are installing the TXG-TW rom must first flash the official TRE update, CHT8000 update, or Hungarian update. TXG-TW requires the /system partition to be larger than 100mb.
  • U8230 and U8220-6 users should not flash the official U8220 updates; install this rom over your original U8230 2.1 rom.
  • You must have Clockwork Recovery installed (not AmonRA) in order to install this rom. Incidentally, I'm using CW Recovery 2.5.0.7; apparently, CW Recovery v.3.0.0.5 does not work correctly. Later versions of CW Recovery might work, but I haven't tested any.
  • In order for DT Apps2SD and swap to work properly, you must format your SD card properly before you install this rom. (I have a 8gb class 10 card with 256mb ext2 partition for a2sd and a 32mb Linux swap partition; the rest is formatted to fat32.) However, the rom should work without doing that; you just won't have that added functionality.

  Download links:

  TXG07.zip
  TXG-TW07.zip
  (full rom with Chinese IME support included;
  you must have flashed either the TRE update, CHT8000 update, or Hungarian update if you want to install this rom
  ; see above for links to two of those official updates)
  Arabic language support patch
  (Updated 2011/12/31: corrects problems with Arabic language display; install after the rom; thanks go to Brightidea over at XDA for this patch)
  Previous versions:
  TXG06.zip
  TXG-TW06.zip
  (full rom with Chinese IME support included)

  Basic installation steps:

  [*]Copy the "TXG*.zip" file to your SD card.[*]Reboot into Clockwork Recovery (2.5.0.7) by holding down the red end call and menu buttons and pushing the power button.[*]"nandroid" then "Backup" (if you skip this step, and you might live to regret it)[*]"wipe data/factory reset" and "Yes -- delete all user data"[*]"install zip from sdcard" then "choose zip from sdcard" then scroll to "TXG*.zip" and "Yes - Install TXG*.zip"[*]"reboot system now"

  Post-installation: See the second post in this thread (just below) for some ideas on how to start using this rom.

  Enjoy.
