It's been a while since my first pictures were posted for the internal
components, so after a few requests I have decided to create a guide on
how to take the phone apart.
These are all new pictures which include the never seen before keyboard stripped down to expose the circuit layout.

To open the main body of the phone you need a T5 Torx screwdriver
(I have posted in the past saying a T4 but later found out that was due to my old driver being worn out :oops:)
Remove the four screws, then you need a small flat bladed screwdriver to
unclip the two retaining clips in the middle sides of the body see below pointing to one of the clips, the other one is on the oppersite side.

Attached File  clip_point.jpg   57.24KB   789 downloads


Once you have uncliped the cover, lift back from the battery cover release end to remove the cover out of the way.
Now you can see the SD card socket

Attached File  SD_Slot.jpg   66.33KB   530 downloads


After removing the screen connector strip, can be lifted out of the way
to expose the Keypad buttons and keypad membrane side of the circuitboard. You can also see the internal battery.

Attached File  Internal_battery.jpg   48.04KB   477 downloads

Attached File  Keypad_membrane.jpg   58.64KB   399 downloads



The metal keypad membrane support plate can be carefully lifted to show the components underneath.

Attached File  Under_the_keypad.jpg   69.14KB   475 downloads




This next part I do not recommend anyone to try unless you want to risk destroying the keypad. I removed the membrane from the backing plate
and then proceded to seperate the top memberane from the circuitboard.
As you can see this is the matix layout of the keypad.

Attached File  keypad_board_front.jpg   50.9KB   374 downloads

Attached File  keypad_board_back.jpg   48.39KB   357 downloads



I went this far in my testing to find the actual cause of the DownLeft problem on the main controller.

Now to move on to the Flip section of the phone.
On the display side there are four rubber plugs, remove these and then the T5 Tork srews underneath them.
Now the hard part, there are two clips either side of the case which have to be lifted very carefully with a small thin blade. You have to be carefull
otherwise you will mark the case as the top cover is plastic.

Attached File  Display_case_clips.jpg   27.96KB   442 downloads


Once you have done this on the hinge is another clip, lift the cover from the top (speaker end) and carefully slide the cover towards the hinge.
Failure to do this will result in the clip being broken off.
You can also see in this picture the vibrate motor and the magnet used for activating the main screen on and off.

Attached File  Vibrate_motor.jpg   48.41KB   472 downloads


Once you have the cover removed unclip the connector cable then you
can lift out the display circuitry.
Note in the two pictures the earpiece speaker and hands free speaker are one component mounted back to back.

Attached File  main_screen.jpg   48.48KB   409 downloads


Attached File  lcd_front_screen.jpg   64.51KB   436 downloads


  • 0
Twitter me @ashwarner

Windows Phone 7 Expert.
Windows Phone Business Specialist



#2
Zain (PRO)

Zain (PRO)

    Newbie

  • Members
  • Pip
  • 40 posts
WOW good work and what i did to my SPV i woont be planing to do that to my mpx220 anytime soon :wink: .

  • 0
Visit my site @ www.blagg.tk

#3
awarner

awarner

    Staff Team Leader

  • Admin Team
  • PipPipPipPipPipPip
  • 18,507 posts
  • Gender:Male
  • Location:Southampton
  • Interests:Life the universe and everything in it :)

    Lumia 925 one hell of a camera phone
  • Devices:Lumia 925 a real phone at last
  • Twitter:@ashwarner

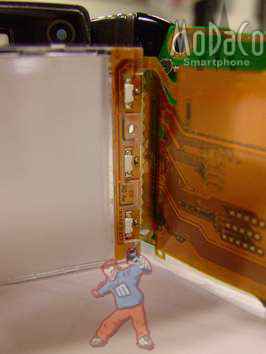

[COLOR=blue]Right I've been playing again and due to a question asked about the

backlight I've decided to go another step further :)
Here are new pictures of the backlight stripped down to show how it works.
The light is generated by three white LEDs based at the bottom of the
screen and gets reflected via a prismatic plate very similar to the SPV.
The advantage the MPX200 has over the SPV it that this plate is at the
back of the display rather than on the front so it not prone to the
handling damage the SPV had.


Attached File  Back_cover_off_LED_on_closeup.jpg   35.28KB   390 downloadsAttached File  Back_cover_off_LED_off.jpg   38.35KB   312 downloadsAttached File  Back_cover_off_LED_on.jpg   35.26KB   316 downloadsAttached File  Back_LED_off.jpg   32.08KB   309 downloadsAttached File  Circuit_film_close_up.jpg   46.59KB   294 downloads[attachment=1453
:attachment]Attached File  LED_on_back_.jpg   33.92KB   354 downloadsAttached File  Picture_046.jpg   41.56KB   377 downloads[attachmen
=14539:attachment]

Attached Files


  • 0
Twitter me @ashwarner

Windows Phone 7 Expert.
Windows Phone Business Specialist



#4
Pondrew

Pondrew

    Hardcore

  • Members
  • PipPipPipPipPipPip
  • 4,404 posts
  • Location:South Croydon
  • Devices:MDA Vario II
Fascinating! :)

  • 0

#5
madmaxedcn

madmaxedcn

    Regular

  • Members
  • PipPip
  • 69 posts
can u pls tell me how the backlight turns on and off.. like what is the mech than turns it on or off magnets , deep switch,? my backlight keeps on going out i put a little preshure on it it goes back on.

  • 0

#6
awarner

awarner

    Staff Team Leader

  • Admin Team
  • PipPipPipPipPipPip
  • 18,507 posts
  • Gender:Male
  • Location:Southampton
  • Interests:Life the universe and everything in it :)

    Lumia 925 one hell of a camera phone
  • Devices:Lumia 925 a real phone at last
  • Twitter:@ashwarner
The backlight is controlled by a small magnet (in yellow in the pictures above)
This is a very strong magnet so your problem may be a loose connector cable
ehich does not seem likely as it is clamped into place.

  • 0
Twitter me @ashwarner

Windows Phone 7 Expert.
Windows Phone Business Specialist



#7
aurallydrifting

aurallydrifting

    Newbie

  • Members
  • Pip
  • 2 posts
ok you guys are truly crazy!!
I'd never be able to piece that thing back together after pulling it apart like that :lol:

  • 0

#8
MadSci

MadSci

    Enthusiast

  • Members
  • PipPipPip
  • 288 posts
  • Gender:Male
  • Location:USA
This is really COOL! =D>

I love to see "what's under the hood" like this, although I'm envious of your skill with these tiny parts. My meathooks would make hash of them for sure.

One small queation, Where is the Internal Antenna?

Thanks!

MadSci

  • 0

#9
awarner

awarner

    Staff Team Leader

  • Admin Team
  • PipPipPipPipPipPip
  • 18,507 posts
  • Gender:Male
  • Location:Southampton
  • Interests:Life the universe and everything in it :)

    Lumia 925 one hell of a camera phone
  • Devices:Lumia 925 a real phone at last
  • Twitter:@ashwarner
Here :lol:

Posted Image

  • 0
Twitter me @ashwarner

Windows Phone 7 Expert.
Windows Phone Business Specialist



#10
MadSci

MadSci

    Enthusiast

  • Members
  • PipPipPip
  • 288 posts
  • Gender:Male
  • Location:USA
Great! Thanks! =D>

  • 0

#11
ne0c0de

ne0c0de

    Newbie

  • Members
  • Pip
  • 2 posts
  • Location:Turkey
great work :)

  • 0

#12
Thumper Net

Thumper Net

    The artist formerly known as Peekie

  • Members
  • PipPipPipPipPipPip
  • 1,888 posts
how do you remove the front screen to remove the very bad dust build up ??? :?: :?: :?:

  • 0
gadget freek , rabbit mad english guy trapped in Holland

#13
awarner

awarner

    Staff Team Leader

  • Admin Team
  • PipPipPipPipPipPip
  • 18,507 posts
  • Gender:Male
  • Location:Southampton
  • Interests:Life the universe and everything in it :)

    Lumia 925 one hell of a camera phone
  • Devices:Lumia 925 a real phone at last
  • Twitter:@ashwarner

Now to move on to the Flip section of the phone.
On the display side there are four rubber plugs, remove these and then the T5 Tork srews underneath them.
Now the hard part, there are two clips either side of the case which have to be lifted very carefully with a small thin blade. You have to be carefull
otherwise you will mark the case as the top cover is plastic.


Once you have done this on the hinge is another clip, lift the cover from the top (speaker end) and carefully slide the cover towards the hinge.
Failure to do this will result in the clip being broken off.


  • 0
Twitter me @ashwarner

Windows Phone 7 Expert.
Windows Phone Business Specialist



#14
MadSci

MadSci

    Enthusiast

  • Members
  • PipPipPip
  • 288 posts
  • Gender:Male
  • Location:USA

<{POST_SNAPBACK}>



CROSSPOST WARNING!

Anyone have the guts to do the same for the MPx220?

Fair warning - I don't! :lol:

MadSci

  • 0

#15
MotoMaster

MotoMaster

    Newbie

  • Members
  • Pip
  • 15 posts
  • Location:FIN
  • Devices:Moto Mpx200
Nice job Awarner! Did you do this just by yourself (no instructions...)?

Some of the pics aren't displayed! I can't see them. There only says: "user posted image".

  • 0
It's here: -Moto Mpx200 !

#16
awarner

awarner

    Staff Team Leader

  • Admin Team
  • PipPipPipPipPipPip
  • 18,507 posts
  • Gender:Male
  • Location:Southampton
  • Interests:Life the universe and everything in it :)

    Lumia 925 one hell of a camera phone
  • Devices:Lumia 925 a real phone at last
  • Twitter:@ashwarner
Yep all my own work and no instructions :D
As far as I'm aware I was the first to strip the MPX200 and give instructions on how to do it. It was an interesting learning curve but
regarding the images I still need to sort them out as the link for them was lost when the site moved at the beginning of the year.

  • 0
Twitter me @ashwarner

Windows Phone 7 Expert.
Windows Phone Business Specialist



#17
onk

onk

    Newbie

  • Members
  • Pip
  • 1 posts
  • Devices:Motorola MPx200
Who have stripped mpx200
write to forum texts from chip used in mpx200

  • 0

#18
awarner

awarner

    Staff Team Leader

  • Admin Team
  • PipPipPipPipPipPip
  • 18,507 posts
  • Gender:Male
  • Location:Southampton
  • Interests:Life the universe and everything in it :)

    Lumia 925 one hell of a camera phone
  • Devices:Lumia 925 a real phone at last
  • Twitter:@ashwarner
Welcome to the site :D

Which chip? and using "please" can work wonders :D

  • 0
Twitter me @ashwarner

Windows Phone 7 Expert.
Windows Phone Business Specialist



#19
MadSci

MadSci

    Enthusiast

  • Members
  • PipPipPip
  • 288 posts
  • Gender:Male
  • Location:USA

It's been a while since my first pictures were posted for the internal
components, so after a few requests I have decided to create a guide on
how to take the phone apart.
These are all new pictures which include the never seen before keyboard stripped down to expose the circuit layout.
To open the main body of the phone you need a T5 Torx screwdriver
(I have posted in the past saying a T4 but later found out that was due to my old driver being worn out :oops:)
Remove the four screws, then you need a small flat bladed screwdriver to
unclip the two retaining clips in the middle sides of the body see below pointing to one of the clips, the other one is on the oppersite side.
Posted Image
Once you have uncliped the cover, lift back from the battery cover release end to remove the cover out of the way.
Now you can see the SD card socket
Posted Image
After removing the screen connector strip, can be lifted out of the way
to expose the Keypad buttons and keypad membrane side of the circuitboard. You can also see the internal battery.
Posted Image
Posted Image
The metal keypad membrane support plate can be carefully lifted to show the components underneath.
Posted Image
This next part I do not recommend anyone to try unless you want to risk destroying the keypad. I removed the membrane from the backing plate
and then proceded to seperate the top memberane from the circuitboard.
As you can see this is the matix layout of the keypad.
Posted Image
Posted Image
I went this far in my testing to find the actual cause of the DownLeft problem on the main controller.
Now to move on to the Flip section of the phone.
On the display side there are four rubber plugs, remove these and then the T5 Tork srews underneath them.
Now the hard part, there are two clips either side of the case which have to be lifted very carefully with a small thin blade. You have to be carefull
otherwise you will mark the case as the top cover is plastic.
Posted Image
Once you have done this on the hinge is another clip, lift the cover from the top (speaker end) and carefully slide the cover towards the hinge.
Failure to do this will result in the clip being broken off.
You can also see in this picture the vibrate motor and the magnet used for activating the main screen on and off.
Posted Image
Once you have the cover removed unclip the connector cable then you
can lift out the display circuitry.
Note in the two pictures the earpiece speaker and hands free speaker are one component mounted back to back.
Posted Image
Posted Image
Thanks to squall for his help :D

<{POST_SNAPBACK}>



CROSSPOST WARNING:

Hey, any chance you've had the courage to do something similar to an MPx220? I'd love to see it!

MadSci

  • 0

#20
awarner

awarner

    Staff Team Leader

  • Admin Team
  • PipPipPipPipPipPip
  • 18,507 posts
  • Gender:Male
  • Location:Southampton
  • Interests:Life the universe and everything in it :)

    Lumia 925 one hell of a camera phone
  • Devices:Lumia 925 a real phone at last
  • Twitter:@ashwarner
Give me an mpx220 and I'll have a go.

  • 0
Twitter me @ashwarner

Windows Phone 7 Expert.
Windows Phone Business Specialist
