What type of GPU has Blade?

- - - - -

  • Please log in to reply
5 replies to this topic

#1
-=GriM=-

-=GriM=-

    Newbie

  • Members
  • Pip
  • 21 posts
  • Devices:Huawei U8230
Please post here what say Quadrant benchmark about GPU(in system information). It really important for me.

  • 0

#2
flibblesan

flibblesan

    Token Northern bloke

  • Assistant Admin Team
  • PipPipPipPipPipPip
  • 5,637 posts
ZTE Blade has an MSM7227 CPU running at 600MHz. The CPU contains an integrated GPU known as Adreno 200 which is also found in earlier Snapdragon CPUs.

I'll try and get the full info from Quadrant.

  • 0

#3
flibblesan

flibblesan

    Token Northern bloke

  • Assistant Admin Team
  • PipPipPipPipPipPip
  • 5,637 posts
CPU
Name: ARMv6-compatible processor rev 5 (v5l)
Current freq.: 600 MHz
Max freq.: 600 MHz
Min freq.: 122.88 MHz
Cores: 1
Architecture: 6TEJ
BogoMIPS: 599.65
Hardware: blade ZTE handset
Revision: 5
Serial #: 0000000000000000

Memory
Total: 424884 kB
Free: 107552 kB
Inactive: 94424 kB

Display
Resolution: 480x800
Refresh rate: 0.1 Hz

GPU (OpenGL)
Vendor: Qualcomm
Renderer: Adreno
Version: OpenGL ES-CM 1.1

Max texture units: 2
Max texture size: 1024
Max lights: 8

VBO: supported
Frame buffers: unsupported
Cube maps: supported
Texture combiners: supported
DOT3 combiner: supported
Crossbar combiner: supported

Extensions:
GL_AMD_compressed_3DC_texture
GL_AMD_compressed_ATC_texture
GL_ARB_texture_env_combine
GL_ARB_texture_env_dot3
GL_ARB_texture_mirrored_repeat
GL_ARB_vertex_buffer_object
GL_ATI_compressed_texture_atitc
GL_ATI_texture_compression_atitc
GL_EXT_blend_equation_separate
GL_EXT_blend_func_separate
GL_EXT_blend_minmax
GL_EXT_blend_subtract
GL_EXT_stencil_wrap
GL_OES_EGL_image
GL_OES_blend_equation_separate
GL_OES_blend_func_separate
GL_OES_blend_subtract
GL_OES_compressed_ETC1_RGB8_texture
GL_OES_compressed_paletted_texture
GL_OES_draw_texture
GL_OES_extended_matrix_palette
GL_OES_framebuffer_object
GL_OES_matrix_palette
GL_OES_point_size_array
GL_OES_point_sprite
GL_OES_read_format
GL_OES_stencil_wrap
GL_OES_texture_cube_map
GL_OES_texture_env_crossbar
GL_OES_texture_mirrored_repeat

Edited by flibblesan, 16 October 2010 - 02:31 PM.

  • 0

#4
-=GriM=-

-=GriM=-

    Newbie

  • Members
  • Pip
  • 21 posts
  • Devices:Huawei U8230
oh, it sounds great! Adreno 200=AMD Z430. Thanx Flib!!!

  • 0

#5
cobhc

cobhc

    Diehard

  • MoDaCo Gold
  • PipPipPipPip
  • 395 posts
  • Devices:Jet, San Fran, HD2
So taking that into account, bar the extra cpu extensions/optimizations of the V7 Arm Architecture, a San Francisco overclocked to 1ghz would result in very similar performance to a Desire. Nice!

  • 0

This place is in dire need of separated sections. It's kinda like we're shitting where we dine.


#6
StickyGeko

StickyGeko

    Regular

  • Members
  • PipPip
  • 57 posts
  • Devices:9700, Orange San Francisco

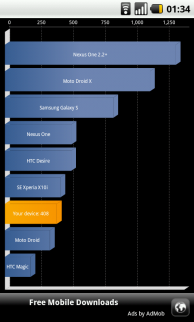

ive stuck these up before, but heres my quad score and neocore...... and is there anything more on the overclockin????

Attached Files


  • 0
