Guyz,

I've created this thread so that every one can share their customization related to CM for B7610...

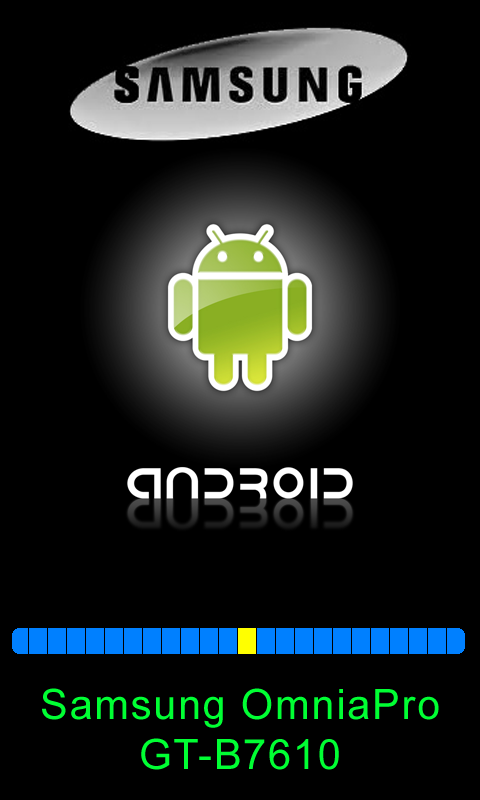

HERE IS MY BOOT SCREEN HD...

For data/local folder CMB611

http://www.mediafire...t0lt0xwxhf1qb0q

For system/media folder - froyob3

http://www.mediafire...1swp6tb7f83piw2

TUTORIAL on How to make your own Boot Screen..

1. First of all create a 480x800 jpg/png you need to use as boot screen.

Posted Image

2. Now make multiple copy of the same depends upon the sequence and size of progress bar you create.. (in my case it I've created 25 images showing progress left to right and another 25 from right to left, so total 50..)
(note that all the images will be loaded repeatedly/loop until the whole android is loaded . SO once it finishes loading 50 images, it will start from the beginning automatically)


3. Then rename the file in order from either 0-100/A-z or so on.. (File name does not matter, file will be shown in order automatically..)

here are the first 3 sample files of my boot screen...

Posted Image Posted Image Posted Image

then here are the reverse one from...

Posted Image Posted Image Posted Image

4. Create all files and put them in a folder & name the folder whatever you want.

5. Now create text file & name it
desc.txt or simply use the file already available with any other boot file..
(You must extract update file or bootanimation.zip file and use desc.txt file from it.)

Write following things in desc.txt

# 480 wide, 800 tall 15 frames per second
480 800 15
p 0 0 [Folder Name]

(This is optional and only for your information)
# p means we're defining a part
# first number is repeat count, 0 means infinite
# second number is delay in frames before performing the next part
# so if you are playing 15 frames a second 15 would be... one second
# string defines the directory to load files from
# files will be loaded in order but names don't matter

# s defines a sound for a part
# sounds will be loaded from /system/media
# oggs with loop points will loop automatically
# only one sound will play at a time
# timing is driven by the part, not the sounds
# if you want no sound, leave blank

# Slide in

# flash
#p 1 0 02_flash
#s zap.ogg

# loop
#p 0 0 [Folder name]

6. Now select both file and folder create a zip file without a compression using 7-zip

Posted Image


7. Now create "data" folder then "local" folder inside it on your computer (for CMB611) or "system" then "media" folder inside it (for froyob3) and Put newly created zip file in it.

8. Now again right click on root folder i.e. "data" or "system" folder and create .tar file using 7-zip.

9.
Now again right click on .tar file you created and create .gzip file using 7-zip.

10. Rename the file to cm_o2_update.tar.gz and use it for auto update...

Thats it,...

You are done..

Attached Files

  • Attached File  13.png   105.59KB   5 downloads

Edited by matriX1218, 14 December 2011 - 08:55 AM.

  • 0
...
matriX1218

#2
Isascaboy89

Isascaboy89

    Enthusiast

  • Members
  • PipPipPip
  • 238 posts
  • Location:Italy
  • Interests:Rally,girls,football,pc
  • Devices:Samsung b7610
First to answer!!!!
Nice screen!!!
But i need to download both the link to use it?
Maybe you, if you want, can create a guide on how to create this boot screen , so aniìyone could make his own bootscreen...what do you think of it?

  • 0

#3
centodue

centodue

    Regular

  • Members
  • PipPip
  • 131 posts
  • Gender:Male
  • Location:Milan
  • Devices:Samsung OmniaPro/B7610
Thak you matriX , nice idea to have created separated discussion for only custom versions.

The two files are to change boot animation and icon/labels ?
As Isascaboy said , if you can create a tutorial to create custom versions, everyone can support and use own fantasy and artistical known

  • 0

#4
matriX1218

matriX1218

    Enthusiast

  • Members
  • PipPipPip
  • 175 posts
  • Gender:Male
  • Location:Surat/Gujarat/India
  • Devices:B7610
Ok
I will create a small tutorial on bootscreen...

Will update first post for same asap... ;)

  • 0
...
matriX1218

#5
Isascaboy89

Isascaboy89

    Enthusiast

  • Members
  • PipPipPip
  • 238 posts
  • Location:Italy
  • Interests:Rally,girls,football,pc
  • Devices:Samsung b7610
Waiting foryour guide!!!
i'm looking forward to make my own boot screen!!!

  • 0

#6
centodue

centodue

    Regular

  • Members
  • PipPip
  • 131 posts
  • Gender:Male
  • Location:Milan
  • Devices:Samsung OmniaPro/B7610
I can say that your new boot it is really wonderful and it is fantastic to have customized B7610 boot of android!

  • 0

#7
matriX1218

matriX1218

    Enthusiast

  • Members
  • PipPipPip
  • 175 posts
  • Gender:Male
  • Location:Surat/Gujarat/India
  • Devices:B7610
will post tomorrow.. sorry i was just busy due office work..

tutorial will be up in 1 day...

  • 0
...
matriX1218

#8
Isascaboy89

Isascaboy89

    Enthusiast

  • Members
  • PipPipPip
  • 238 posts
  • Location:Italy
  • Interests:Rally,girls,football,pc
  • Devices:Samsung b7610

will post tomorrow.. sorry i was just busy due office work..

tutorial will be up in 1 day...


Great news matrix...i hope to see it soon and start making tons of booting screen (i've already an idea)
By the way i have to ask you 2 questions:
1) How can i install your boot screen? (i mean if i have to download both the file and where i must place it)
2) Can i share your tutorial (after having translated it in italian) in an italian forum that also centodue knows (and i hope appreciate :rolleyes:) named ip mart italia? In this forum i post all the news (an the files) of the android release that you can find here in modaco. If you want i can give you the link.

I wait for your answer.
Bye

  • 0

#9
matriX1218

matriX1218

    Enthusiast

  • Members
  • PipPipPip
  • 175 posts
  • Gender:Male
  • Location:Surat/Gujarat/India
  • Devices:B7610

Great news matrix...i hope to see it soon and start making tons of booting screen (i've already an idea)
By the way i have to ask you 2 questions:
1) How can i install your boot screen? (i mean if i have to download both the file and where i must place it)
2) Can i share your tutorial (after having translated it in italian) in an italian forum that also centodue knows (and i hope appreciate :rolleyes:) named ip mart italia? In this forum i post all the news (an the files) of the android release that you can find here in modaco. If you want i can give you the link.

I wait for your answer.
Bye


Tnx
1. If you are on latest CMB611 then replace bootscreen.zip in data/local folder

and if you are on froyob3 replace bootscreen.zip in system/media folder

or simply try update file...

2. ofcourse you can share whatever you want to share from my posts.. ;)

  • 0
...
matriX1218

#10
Isascaboy89

Isascaboy89

    Enthusiast

  • Members
  • PipPipPip
  • 238 posts
  • Location:Italy
  • Interests:Rally,girls,football,pc
  • Devices:Samsung b7610
Yes i'm on latest cyanogen mod..i will download and try immediatly.
Thx for allowing me to share your future guides.

EDIT: Tryed and like it...but if i want to return to default lock screen what i have to do?
and ther is some way to modify the prevoius screen (i mean tho one with the "android on omnia 2 loading" on grey surface?

Edited by Isascaboy89, 13 December 2011 - 10:56 PM.

  • 0

#11
matriX1218

matriX1218

    Enthusiast

  • Members
  • PipPipPip
  • 175 posts
  • Gender:Male
  • Location:Surat/Gujarat/India
  • Devices:B7610
Guide is up...B)

  • 0
...
matriX1218

#12
Isascaboy89

Isascaboy89

    Enthusiast

  • Members
  • PipPipPip
  • 238 posts
  • Location:Italy
  • Interests:Rally,girls,football,pc
  • Devices:Samsung b7610
I see...it seems very very very clear...i will try asap
A question: you said to use 7zip, i must use it or i can also use winrar?

Edited by Isascaboy89, 14 December 2011 - 09:26 AM.

  • 0

#13
centodue

centodue

    Regular

  • Members
  • PipPip
  • 131 posts
  • Gender:Male
  • Location:Milan
  • Devices:Samsung OmniaPro/B7610

I see...it seems very very very clear...i will try asap
A question: you said to use 7zip, i must use it or i can also use winrar?


Compression with 7zip seems to be more correct for ".tar.gz" extensions
Rar compression could change some files and gives problem during uncompression.

Thank you matrix for clear tutorial!

  • 0

#14
Isascaboy89

Isascaboy89

    Enthusiast

  • Members
  • PipPipPip
  • 238 posts
  • Location:Italy
  • Interests:Rally,girls,football,pc
  • Devices:Samsung b7610

Compression with 7zip seems to be more correct for ".tar.gz" extensions
Rar compression could change some files and gives problem during uncompression.

Thank you matrix for clear tutorial!


Ok thx...so i will download it and use it for my customization..
When you have time come to leave a post on ip mart...there is one user that is waiting for your answer in android on b7610 section

Edited by Isascaboy89, 14 December 2011 - 01:34 PM.

  • 0

#15
matriX1218

matriX1218

    Enthusiast

  • Members
  • PipPipPip
  • 175 posts
  • Gender:Male
  • Location:Surat/Gujarat/India
  • Devices:B7610

Ok thx...so i will download it and use it for my customization..
When you have time come to leave a post on ip mart...there is one user that is waiting for your answer in android on b7610 section


What kind of answer?
Can you post question here or link to it overehere?

  • 0
...
matriX1218

#16
Isascaboy89

Isascaboy89

    Enthusiast

  • Members
  • PipPipPip
  • 238 posts
  • Location:Italy
  • Interests:Rally,girls,football,pc
  • Devices:Samsung b7610

What kind of answer?
Can you post question here or link to it overehere?


Sorry matrix this message was for centodue...
MAtrix do you know how to customize the screen with "android onomnia 2 loading"?

  • 0

#17
matriX1218

matriX1218

    Enthusiast

  • Members
  • PipPipPip
  • 175 posts
  • Gender:Male
  • Location:Surat/Gujarat/India
  • Devices:B7610

Sorry matrix this message was for centodue...
MAtrix do you know how to customize the screen with "android onomnia 2 loading"?


Not possible as of now... it is in zImage.. O2Droid source... so can't be changed..

  • 0
...
matriX1218

#18
Isascaboy89

Isascaboy89

    Enthusiast

  • Members
  • PipPipPip
  • 238 posts
  • Location:Italy
  • Interests:Rally,girls,football,pc
  • Devices:Samsung b7610
I see...thx for your answer

  • 0

#19
gauravv

gauravv

    Diehard

  • Members
  • PipPipPipPip
  • 350 posts
  • Gender:Male
  • Devices:Omnia B7610
hey i want sense type theme....anyone have it ??

  • 0

#20
Isascaboy89

Isascaboy89

    Enthusiast

  • Members
  • PipPipPip
  • 238 posts
  • Location:Italy
  • Interests:Rally,girls,football,pc
  • Devices:Samsung b7610

hey i want sense type theme....anyone have it ??


I don't have it...but you can try to make your own by following this tutorial

  • 1
