Mpx200 How To Dismantle

[Guest awarner [MVP]]

To open the main body of the phone you need a T5 Torx screwdriver

Remove the four screws, then you need a small flat bladed screwdriver to

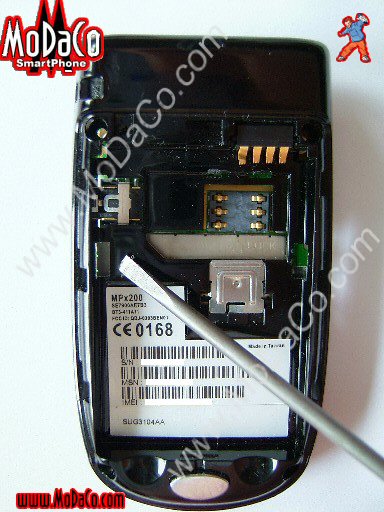

unclip the two retaining clips in the middle sides of the body see below pointing to one of the clips, the other one is on the oppersite side.

Once you have uncliped the cover, lift back from the battery cover release end to remove the cover out of the way.

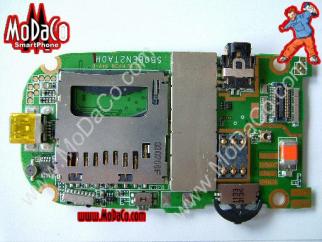

Now you can see the SD card socket

After removing the screen connector strip, can be lifted out of the way

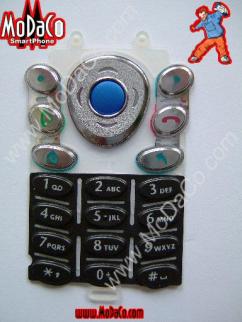

to expose the Keypad buttons and keypad membrane side of the circuitboard. You can also see the internal battery.

[

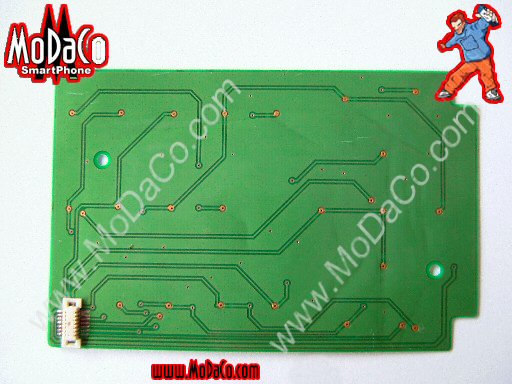

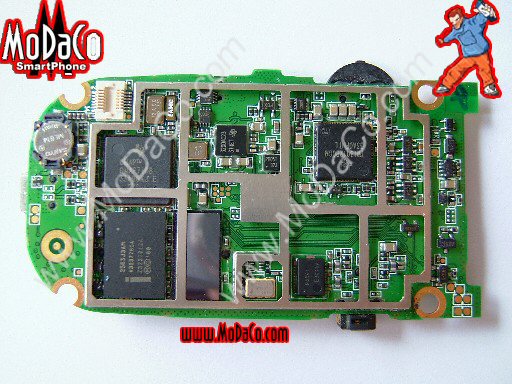

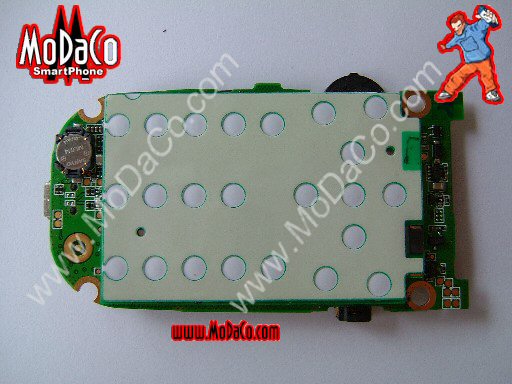

The metal keypad membrane support plate can be carefully lifted to show the components underneath.

This next part I do not recommend anyone to try unless you want to risk destroying the keypad. I removed the membrane from the backing plate

and then proceded to seperate the top memberane from the circuitboard.

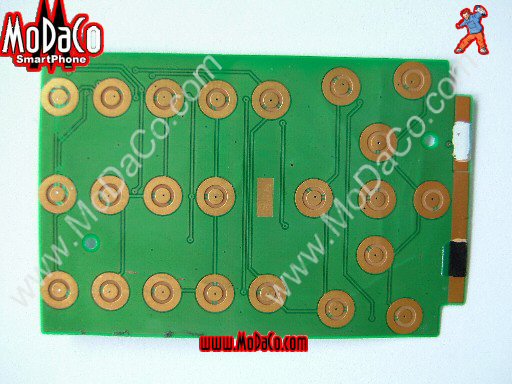

As you can see this is the matix layout of the keypad.

I went this far in my testing to find the actual cause of the DownLeft problem on the main controller.

Now to move on to the Flip section of the phone.

On the display side there are four rubber plugs, remove these and then the T5 Tork srews underneath them.

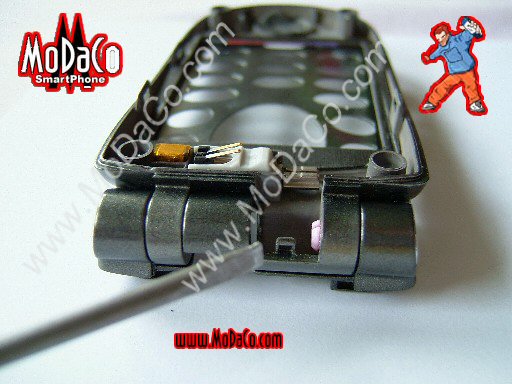

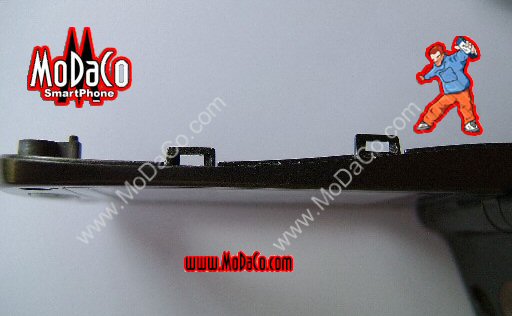

Now the hard part, there are two clips either side of the case which have to be lifted very carefully with a small thin blade. You have to be carefull

otherwise you will mark the case as the top cover is plastic.

Once you have done this on the hinge is another clip, lift the cover from the top (speaker end) and carefully slide the cover towards the hinge.

Failure to do this will result in the clip being broken off.

You can also see in this picture the vibrate motor and the magnet used for activating the main screen on and off.

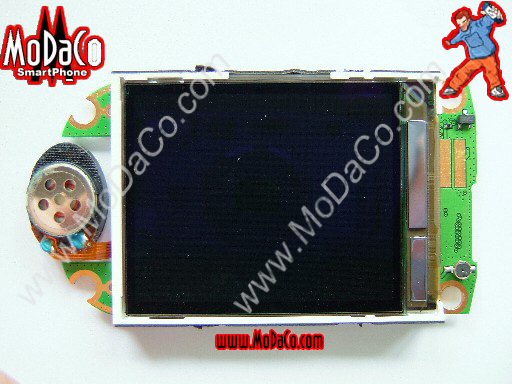

Once you have the cover removed unclip the connector cable then you

can lift out the display circuitry.

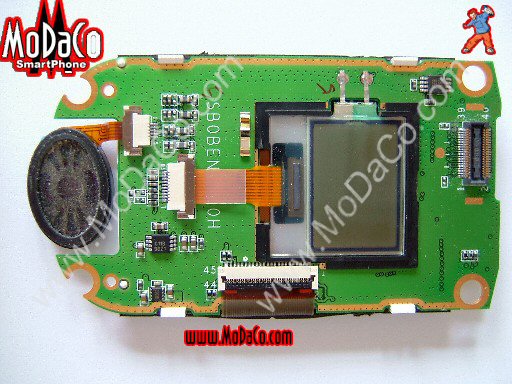

Note in the two pictures the earpiece speaker and hands free speaker are one component mounted back to back.
