Guide to Flashing using 32bit Vista/Windows 7 only

- - - - -

  • Please log in to reply
63 replies to this topic

#1
KSTAN

KSTAN

    Diehard

  • Members
  • PipPipPipPip
  • 373 posts
  • Location:SG
  • Devices:Samsung Omnia II GT-I8000
Below is the guide on how to setup 32bit Vista / Win7 for flashing. Do not ask me re 64bit as I couldn't find any 64bit driver for v5 (Samsung MITS USB Sync). Do provide if you have so we can test it.

Thanks to VyRuz nd jazzz0904 for posting the results.

Note: Use Octan Downloader v1.91

1. At WMDC, click on Mobile Device Setting, and set connection settings as below:
Attached File  1.png   24.33KB   1686 downloads

2. Go to ur phone, under settings (default windows mobile settings, not Samsung Main Menu Settings), go to connections, usb to pc and uncheck "Enable advanced network functionality".

3. Connect ur phone to ur PC or laptop and it will start to install the Samsung MITs USB Sync driver.
Attached File  2.png   6.49KB   1040 downloads

Attached File  3.png   5.98KB   839 downloads

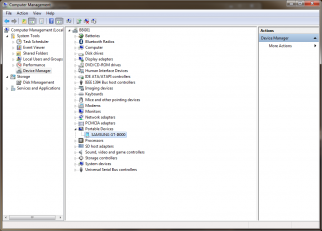

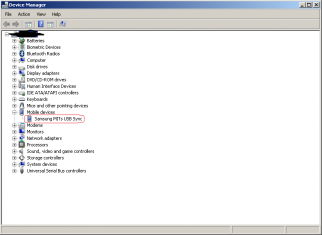

4. Go to Device Manager, under Mobile Device,
Attached File  4.png   30.2KB   1506 downloads

5. Double click on it, and choose Driver Tab, u shld see the driver version is 6.1
Attached File  5.png   44.28KB   1703 downloads

6. Click on update driver, then choose "Browse my computer for driver software"
Attached File  6.png   16.73KB   995 downloads

7. Choose "Let me Pick from a list of device drivers on my computer". Click "Have Disk", and browse to the path of the driver. And it shld be installed.


Important Note: Right click on "Octans Downloader v1.91.exe", click on properties, and select Compatibilty tab and set as below
Attached File  7.png   17.19KB   1091 downloads

Important Note also; After connecting ur phone via usb cable, verify the "Samsung MITs USB Sync" driver version again to make sure it is version 5, else gotta reinstall it.

Attached files:
1. Samsung CDMA driver - Attached File  Samsung_CDMA_modem_4_1_.34.zip   478.89KB   3104 downloads
2. Samsung MITs USB Sync driver (version 5) - Attached File  Vista_v5.rar   28.31KB   5683 downloads

Edited by KSTAN, 09 October 2009 - 01:50 PM.

  • 0
Samsung Omnia II GT-I8000

#2
dinfung

dinfung

    Regular

  • Members
  • PipPip
  • 62 posts
  • Devices:i8000

Those who wish and have try it out, help to post ur results... thx :)


Hum, it might also work on Vista. But 1st have to find a way to install the Samsung MITs USB Sync driver.

  • 0
O2 Exec > N95 > N82 > i908 > HTC HD > i8000 > N900 >i9000

#3
zzzzzz54321

zzzzzz54321

    Regular

  • Members
  • PipPip
  • 75 posts

Hi Guys,

At ur own risk.

As usual, need to install all the samsung drivers and make sure "Samsung MITs USB Sync" is version 5.



Right click on Octans Downloader, and select Windows XP (service pack 3) as in the pic.


Those who wish and have try it out, help to post ur results... thx :)


"As usual, need to install all the samsung drivers and make sure "Samsung MITs USB Sync" is version 5." like what ?
any drivers tat work in win7 x64 ?

  • 0

#4
KSTAN

KSTAN

    Diehard

  • Members
  • PipPipPipPip
  • 373 posts
  • Location:SG
  • Devices:Samsung Omnia II GT-I8000

"As usual, need to install all the samsung drivers and make sure "Samsung MITs USB Sync" is version 5." like what ?
any drivers tat work in win7 x64 ?


Refer to 1st post for drivers.

Edited by KSTAN, 09 October 2009 - 01:31 PM.

  • 0
Samsung Omnia II GT-I8000

#5
katerini

katerini

    Newbie

  • Members
  • Pip
  • 18 posts
I can not update to the Vista v5 drivers. I have windows vista home german.
Any idea?

  • 0

#6
KSTAN

KSTAN

    Diehard

  • Members
  • PipPipPipPip
  • 373 posts
  • Location:SG
  • Devices:Samsung Omnia II GT-I8000
Are u using 32 bit or 64bit OS? Cos the driver should be for 32bit OS only. I tried aso to update my driver, it tells me that it is not a 64bit driver hence I cannot proceed to update to version 5. After some googling, was still unable to find any 64 bit drivers.

Refer to 1st post for guide.

Sorry, was unable to verify after step 7 as I using 64bit Windows 7. Hope this helps. :)

Edited by KSTAN, 09 October 2009 - 01:32 PM.

  • 0
Samsung Omnia II GT-I8000

#7
katerini

katerini

    Newbie

  • Members
  • Pip
  • 18 posts
I have update to 6.5 without these steps! Everything is ok! I have vista 32k German.
The only drivers i have installed are the Samsung_CDMA_modem_4_1_.34
Everything else i have done like the update from XP.
And i have first open the octans, then choose all the rom staff, deteckt, turned off and the device was recognised!

  • 0

#8
VyRuZ

VyRuZ

    Newbie

  • Members
  • Pip
  • 7 posts
  • Devices:Samsung OMNIA2 I8000
All the steps work for Windows 7 Ultimate 32bit, with included drivers by you.

Will test flashing and report.

  • 0

#9
tropolite

tropolite

    Regular

  • Members
  • PipPip
  • 84 posts
  • Location:South Australia
  • Devices:Omnia II i8000
All

It may also be a good idea to select another option in the Compatibility window...

Select the Run this progam in compatibility mode for:
Windows XP (Service Pack 2 (or 3))

AND

... the last checkbox under the Privilege Level option

Select "Run this program as an Administrator"
That should assist with running on Win7
:)

  • 0

#10
VyRuZ

VyRuZ

    Newbie

  • Members
  • Pip
  • 7 posts
  • Devices:Samsung OMNIA2 I8000
I have flashed my brother's cellphone and everything worked out great!

Thank you for the guide, mate, and the drivers!

  • 0

#11
jazzz0904

jazzz0904

    Newbie

  • Members
  • Pip
  • 29 posts
  • Devices:omnia 2
Thank you so much for this forum useful TIPS & all the guides and drivers.
Can successfully flash ROM in Win 7 followimg the steps, sorry for the previous comment............

Edited by jazzz0904, 09 October 2009 - 04:47 PM.

  • 0

#12
KSTAN

KSTAN

    Diehard

  • Members
  • PipPipPipPip
  • 373 posts
  • Location:SG
  • Devices:Samsung Omnia II GT-I8000
Thank you jazzz0904 and the rest for contributing your test results and findings.

  • 0
Samsung Omnia II GT-I8000

#13
KSTAN

KSTAN

    Diehard

  • Members
  • PipPipPipPip
  • 373 posts
  • Location:SG
  • Devices:Samsung Omnia II GT-I8000

All

It may also be a good idea to select another option in the Compatibility window...

Select the Run this progam in compatibility mode for:
Windows XP (Service Pack 2 (or 3))

AND

... the last checkbox under the Privilege Level option

Select "Run this program as an Administrator"
That should assist with running on Win7
:)


Thanks for including this as i have forgotten to include it.

  • 0
Samsung Omnia II GT-I8000

#14
tropolite

tropolite

    Regular

  • Members
  • PipPip
  • 84 posts
  • Location:South Australia
  • Devices:Omnia II i8000

Thanks for including this as i have forgotten to include it.



Happy to contribute, after all that's what we're here for... share the knowledge :)

Cheers

  • 0

#15
vodanhdaisu

vodanhdaisu

    Regular

  • Members
  • PipPip
  • 124 posts
Hi there, can you share Octans Downloader 1.91 ? It's hard to find it :)

Thanks

Edited by vodanhdaisu, 09 October 2009 - 03:47 PM.

  • 0

#16
jazzz0904

jazzz0904

    Newbie

  • Members
  • Pip
  • 29 posts
  • Devices:omnia 2

Hi there, can you share Octans Downloader 1.91 ? It's hard to find it :)

Thanks


Sorry for my previous statement. It actually works on both Ocans versions.
Only thing is that you need to connect the usb cable many times as there seems to be a problem
which can be notice under mobile devices in Windows Device Manager for the Samsung MITs USB Sync.

  • 0

#17
Brooksey

Brooksey

    Newbie

  • Members
  • Pip
  • 15 posts
  • Devices:Samsung Omnia 2
I cannot seem to Flash to a ROM :)

Followed all instructions, but all that OCTANS says is

[Setup] Windows XP
[Setup] Download Ram Size :41777920 bytes,(39 MB)
OnDeviceChange \\?\USB#VID_04E8&PID_6619#5&2637b603&0&1#{25dbce51-6c8f-4a72-8a6d-b54c2b4fc835}

Nothing on my Omnia screen except a battery charge icon

  • 0

#18
jazzz0904

jazzz0904

    Newbie

  • Members
  • Pip
  • 29 posts
  • Devices:omnia 2

I cannot seem to Flash to a ROM :)

Followed all instructions, but all that OCTANS says is

[Setup] Windows XP
[Setup] Download Ram Size :41777920 bytes,(39 MB)
OnDeviceChange \\?\USB#VID_04E8&PID_6619#5&2637b603&0&1#{25dbce51-6c8f-4a72-8a6d-b54c2b4fc835}

Nothing on my Omnia screen except a battery charge icon



That's the problem, you got to re-connect many times till you are able to "Start downloading".
Did you miss:
Select the Run this progam in compatibility mode for:
Windows XP (Service Pack 2 (or 3))

AND

... the last checkbox under the Privilege Level option

Select "Run this program as an Administrator"
I had done that many times.

Edited by jazzz0904, 10 October 2009 - 10:14 AM.

  • 0

#19
Brooksey

Brooksey

    Newbie

  • Members
  • Pip
  • 15 posts
  • Devices:Samsung Omnia 2
It appears that Mobile center cannot even detect the phone now :)

  • 0

#20
Brooksey

Brooksey

    Newbie

  • Members
  • Pip
  • 15 posts
  • Devices:Samsung Omnia 2
Fixed the Mobile center, but get thsi in the log for downloading

[Error:0] USB no ack. Check ActiveSync. TimeOut:-1

  • 0
