Omnia 2 as a projector

[Guest om990rt]

Hi,

anyone tried projecting the screen of omnia 2? i tried it and it's very satisfactory but room must be dark. Quality is very clear. All you need is a small box 2x the length of the omnia 2, a mirror tilted at 45 degrees and a magnifying lens or glass. try it yourself its fun. Google is your friend if you need help

cheers

[Guest azza6]

Hi,

anyone tried projecting the screen of omnia 2? i tried it and it's very satisfactory but room must be dark. Quality is very clear. All you need is a small box 2x the length of the omnia 2, a mirror tilted at 45 degrees and a magnifying lens or glass. try it yourself its fun. Google is your friend if you need help

cheers

Can you take a few pictures of your setup to show? Sounds interesting! :(

[Guest om990rt]

No mirrors, the hole in front is for the lens and the hole by the side is to slot in my phone, slot it in upside down to get the right image. The width of the box is exactly the length of the phone. Found a way to make it as bright as some market projectors by using TCPMP to adjust the brightness and contrast.

cheers

[Guest navin-shetty]

No mirrors, the hole in front is for the lens and the hole by the side is to slot in my phone, slot it in upside down to get the right image. The width of the box is exactly the length of the phone. Found a way to make it as bright as some market projectors by using TCPMP to adjust the brightness and contrast.

cheers

wow, thats a nice try...good indeed. :(

[Guest flopyro]

really nice ideea ..

i tryed to search on google about it .. but i found only phones with projectors built in ....

can u give me some more details ? more pics ? i wanna try it out for myself

and can u take o pic of the projecton of the movie/pic ?

thanks!

[Guest NuclearEMP]

I did something similar :(

Omnia 2 + Pk201 Pico Projector = Awesome!!! :(

(if only Omnia2 had HDMI out :P

Edited July 28, 2010 by NuclearEMP

[Guest om990rt]

hi,

All you need is a box like the picture above i don't have an extra phone to make the video sorry. Make the above box first and you will figure it out naturally. Remember the magnifying lens/glass for the front. The new samsung beam got a builtin projector but i'll stick with this as it cost almost nothing to make.

You can try this it's almost similar but as i don't use mirror i just slot it in rather than laying it on top in this video. I figure the quality is better without the mirror.

cheers

[Guest kaspy]

hi,

All you need is a box like the picture above i don't have an extra phone to make the video sorry. Make the above box first and you will figure it out naturally. Remember the magnifying lens/glass for the front. The new samsung beam got a builtin projector but i'll stick with this as it cost almost nothing to make.

You can try this it's almost similar but as i don't use mirror i just slot it in rather than laying it on top in this video. I figure the quality is better without the mirror.

cheers

the picture is very very dull . i have tried moving the lens and phone but didnot helped.well would be great if you help me more.how much distance far mobile should be .and the lengh of box . and the distance of the lens from the box. do i need the mirrors and two lenses . i actually have only on eof them

[Guest daskalos]

hmmm about pico projector...

I have an LG Expo with Pico projector... and the projector is great

Here's 10 inches

And here's 80 inches

.

I do wonder if the pico projector could work in my b7610. The projector is powered by expo's battery which is nearly as same capacity with B7610 and i8000. The problem is, there are naked flat wires in the back of expo that connects to the pico (2 sets: one set gives power to the pico projector and another set that receives the signal, may be same as the signal that comes out from TV-out?).

I want to try experimenting it but i'm afraid that a wrong move would short circuit the pico :(

[Guest om990rt]

Hi,

roughly 3 inches away from lens but you have to adjust yourself to get the right quality and also your lens flip it over and try. Use tcpmp to adjust the brightness up and then contrast too.

cheers

[Guest kaspy]

Hi,

roughly 3 inches away from lens but you have to adjust yourself to get the right quality and also your lens flip it over and try. Use tcpmp to adjust the brightness up and then contrast too.

cheers

what is the size of the image we get out on the wal.. preently iam getting very small size as biggest as 19 " .

and thaz also not very clear...

i will post the pic of the appratus iam using.

how much size ar eyou all getting..

[Guest jeffrey2000]

As my contract is alsmost over i'm waiting for the Samsung Beam i8520 (android) with a buildin pico projector, should be released in the following months.

Edited July 29, 2010 by jeffrey2000

[Guest om990rt]

what is the size of the image we get out on the wal.. preently iam getting very small size as biggest as 19 " .

and thaz also not very clear...

i will post the pic of the appratus iam using.

how much size ar eyou all getting..

can go as high as 70" did you adjust the brightness and contrast? try tcpmp netdrag or something can't recall the name.

Yeah beam is cool its already release in my country hehe

[Guest kaspy]

can go as high as 70" did you adjust the brightness and contrast? try tcpmp netdrag or something can't recall the name.

Yeah beam is cool its already release in my country hehe

thanks bro for helping . but i am using a box 2x the length of the omnia .

i have adjusted the brightness and contrast through code media player.

i can use see the very dull and very small pic . although i tried many times.

iam using omnia 7610 .

is that the case . i am not getting it work .

iam setting you the pics. plz guide me .

well i have tried on two boxs

1. the box was small

2. the box is big .

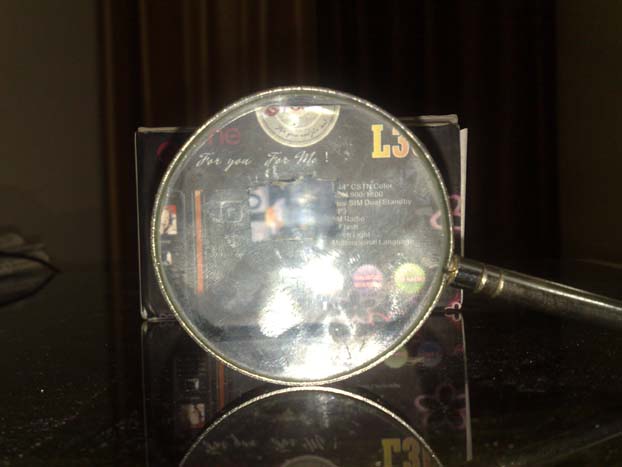

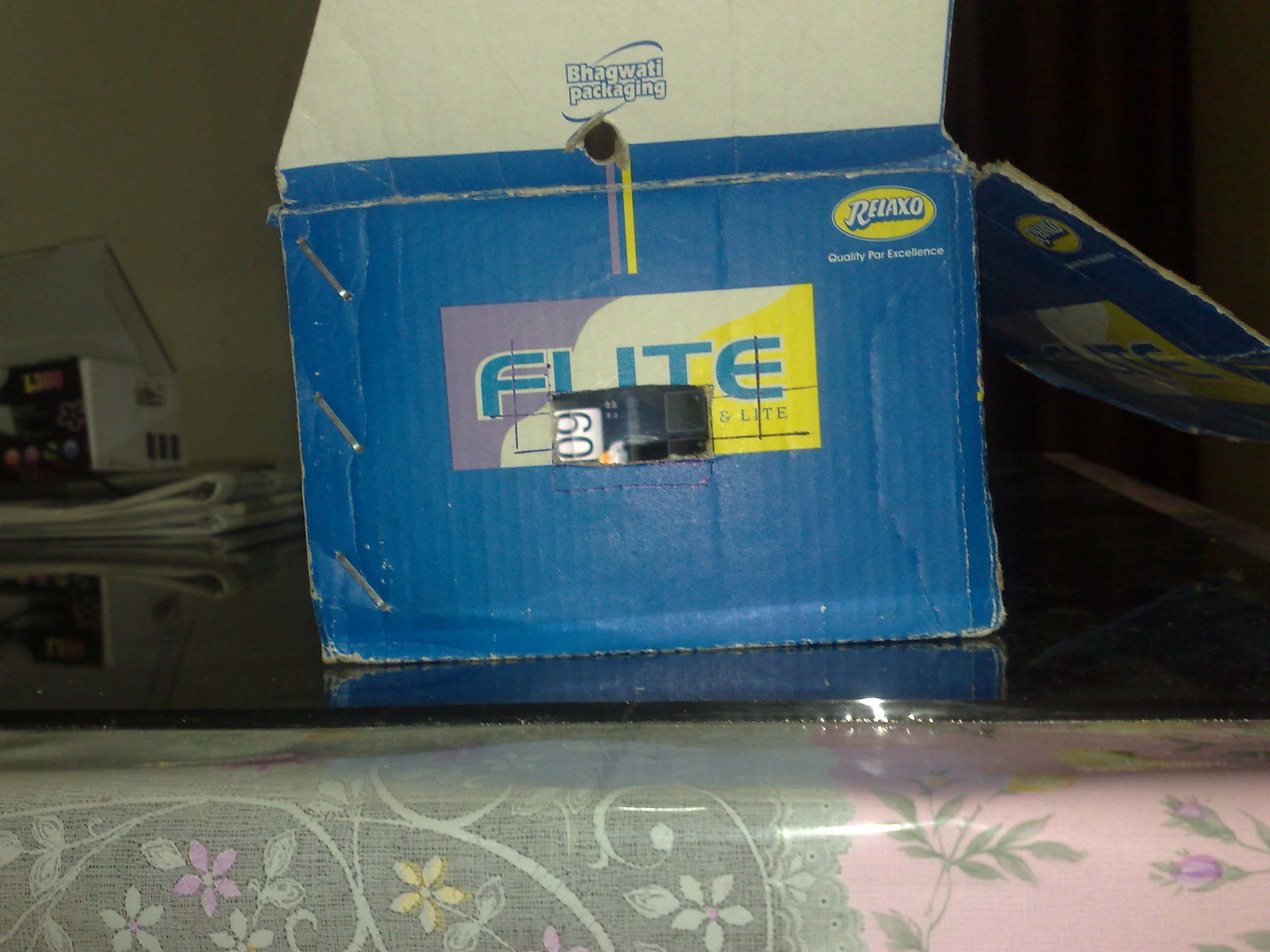

you can see the pics i have uploaded here. and guide me , is there a problem with hole size . or what problem .

and plz tell me how much far the screen should be..

[Guest orionm42]

Hi,

anyone tried projecting the screen of omnia 2? i tried it and it's very satisfactory but room must be dark. Quality is very clear. All you need is a small box 2x the length of the omnia 2, a mirror tilted at 45 degrees and a magnifying lens or glass. try it yourself its fun. Google is your friend if you need help

cheers

can you take few photos from your simple projector ???

[Guest om990rt]

Hi,

your 1st picture settings look just the same as mine, maybe you try another lens? that's the lens i use i ripped it off a used binoculars hope this info helps. i can't take any pictures of video while projecting as i said i only have one camera which is this phone sorry.

cheers

[Guest kaspy]

Hi,

your 1st picture settings look just the same as mine, maybe you try another lens? that's the lens i use i ripped it off a used binoculars hope this info helps. i can't take any pictures of video while projecting as i said i only have one camera which is this phone sorry.

cheers

well i have got a bigger image but the color quality fades like anything . i have adjusted the color and brightness. also at small size the quality is good but at large it gets ugly. i am now using a binocular lens .

which lens should be use objective or subjective

means the lens near the eye or away from eye.

i am presently using away from eye lens.

can we add two lens or mirrors or some arrangement to increase the quality of the image .

is there way to increase the brightness,

well which values are you using with color .brightness and contrast with the tcmp . i will try same values .

iam currently using a color /saturation as 98%

brightness 70%

and contrast 88%

like this .

but when viewing directly on screen it looks ugly .with uneven colors and all dirty faces

well i have seen many DIY projectors but they make a lcd used as projectors.

well it will be great if we use two lens . like something to even more good images...................

cheers

have a great time

[Guest om990rt]

Hi,

you can use those projector guides it's the same concept just that the we already have the source omnia 2 = (lcd + bulb). You should reset your values to 50% and work from there adjusting only brightness and contrast nothing else. Adjust brightness first until u get a very bright source then adjust the contrast till its clear. I use only 1.box 2.lens 3.omnia2, you could try 2 lens if you want the setup should be omnia2 > magnifying glass > lens but you need to keep adjust all 3 till you get a clear picture as i don't know how strong your lens is but seriously 1 lens is enough. Good luck

cheers

[Guest kaspy]

Hi,

you can use those projector guides it's the same concept just that the we already have the source omnia 2 = (lcd + bulb). You should reset your values to 50% and work from there adjusting only brightness and contrast nothing else. Adjust brightness first until u get a very bright source then adjust the contrast till its clear. I use only 1.box 2.lens 3.omnia2, you could try 2 lens if you want the setup should be omnia2 > magnifying glass > lens but you need to keep adjust all 3 till you get a clear picture as i don't know how strong your lens is but seriously 1 lens is enough. Good luck

cheers

well i will tell when i will make some good thing more clear and brighter the pic .

well how far your screen is from the lens

[Guest om990rt]

3/4 phone length usually but depends on how big i want the projection to be
